General Features / Specifications and Code Letter

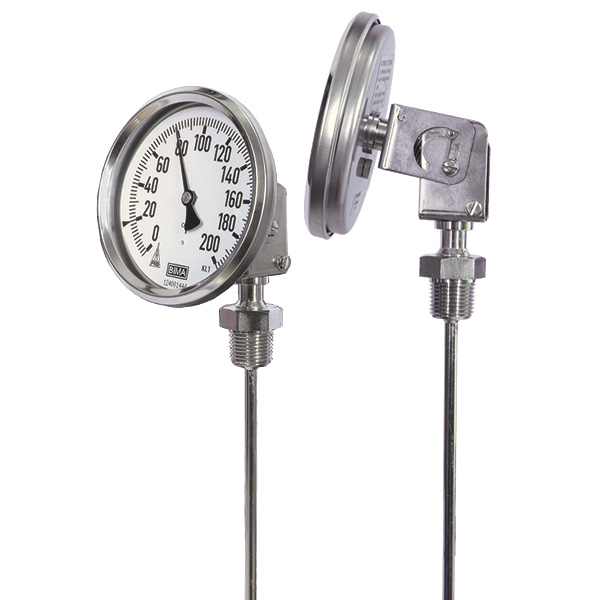

Bimetal Thermometers Bottom, Back and Every Angle Type
Dial Size 63mm (2 ½"), 80mm (3"), 100mm (4"), 4 ½" and 160mm (6”)

Model	TBI / TBIB / TBIE TBI-L / TBIB-L / TBIE-L (Silicon Oil) 63 (2 1/2”) / 80 (3”) / 100 (4”) / 125 (5”) / 160 (6”)
Case	Stainless steel AISI 304
Ring	Bayonet Ring, Stainless steel AISI 304
Wetted Material	Stainless Steel AISI 316L
Temperature Ranges	-50 to +600 Celsius Degrees

DOWNLOAD PDF

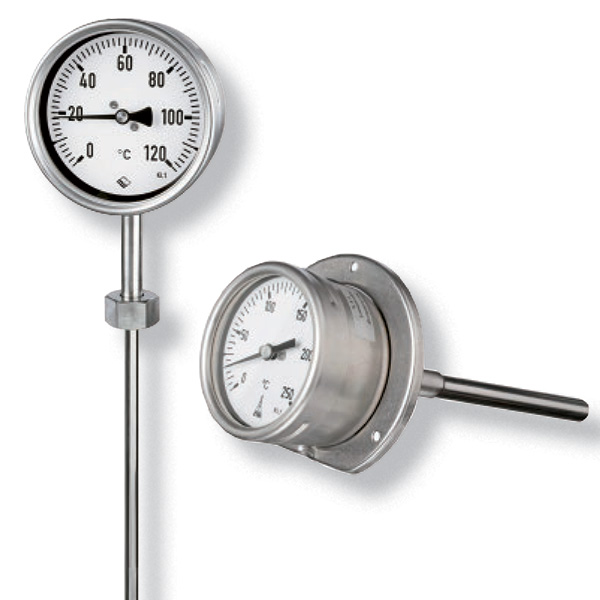

Gas Actuated Thermometers Rigid Stem
Dial Size 63mm (2 ½"), 100mm (4"), and 160mm (6")

Model	TGI / TGI-L (Silicon Oil) 63 (2 1/2”) / 100 (4”) / 160 (6”)
Case	Stainless steel AISI 304
Ring	Bayonet Ring, Stainless steel AISI 304
Wetted Material	Stainless Steel AISI 316L
Temperature Ranges	-100 to +600 Celsius Degrees

DOWNLOAD PDF

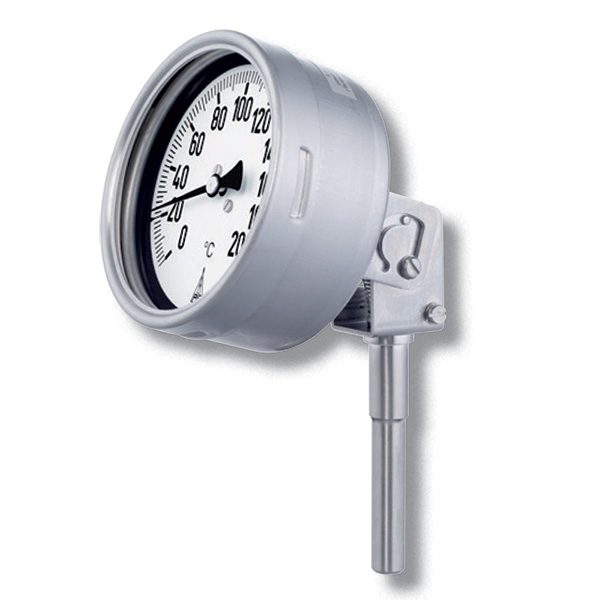

Gas Actuated Thermometers Every Angle
Dial Size 63mm (2 ½"), 100mm (4"), and 160mm (6”)

Model	TGIE / TGIE-L (Silicon Oil) 63 (2 1/2”) / 100 (4”) / 160 (6”)
Case	Stainless steel AISI 304
Ring	Bayonet Ring, Stainless steel AISI 304
Wetted Material	Stainless Steel AISI 316L
Temperature Ranges	-100 to +600 Celsius Degrees

DOWNLOAD PDF

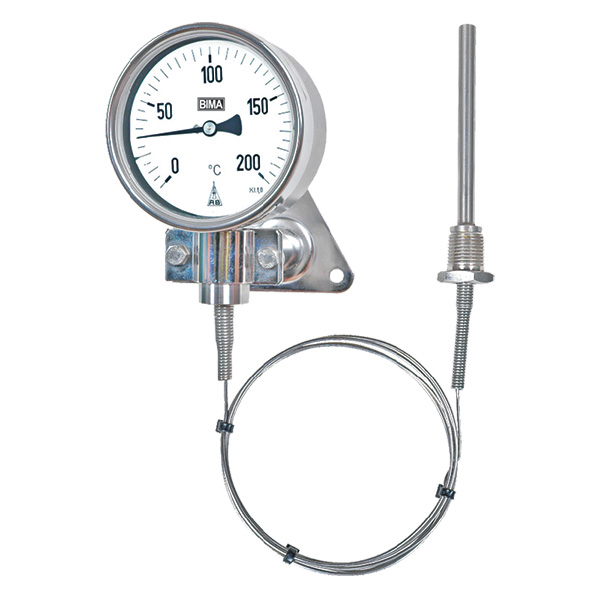

Thermometers with Capillary Line
Dial Size 63mm (2 ½"), 80mm (3"), 100mm (4"), 4 ½" and 160mm (6”)

Model	TC / TC-L (Silicon Oil) 63 (2 1/2”) / 80 (3”) / 100 (4”) / 160 (6”)
Case	Stainless steel AISI 304
Ring	Bayonet Ring, Stainless steel AISI 304
Wetted Material	Stainless Steel AISI 316L
Temperature Ranges	-50 to +600 Celsius Degrees

DOWNLOAD PDF
